ERAY Smart ECO DR Series -
Ceiling Free X-Ray

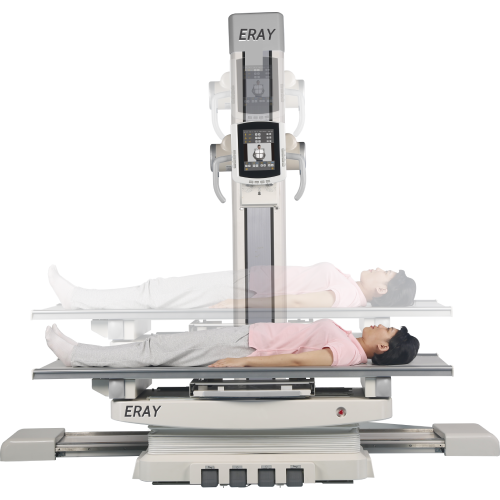

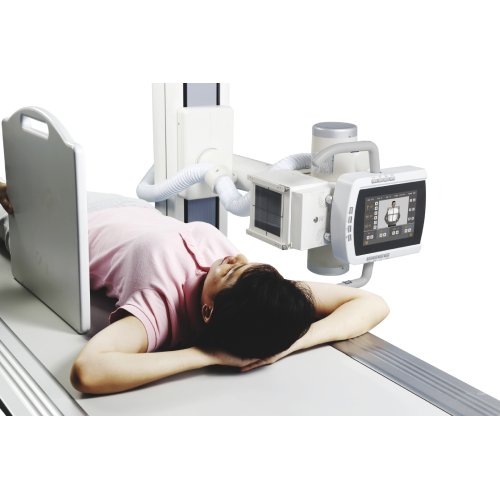

Edusoft's latest offering, the ERAY SMART ECO DR Series, provides cost-effective and high-quality X-ray solutions for a range of clinical applications. With its multi-functionality and compatibility with Edusoft's latest DR panel, the SMART ECO DR offers flexible options for your imaging department. It is equipped with a floor-mounted X-ray tube option suitable for use with a chest bucky stand and mobile table. Upgrade your imaging capabilities with this cutting-edge X-ray system.

Download Brochure
img img img img
SPECIFICATION ERAY RAD 630S ERAY RAD 800S ERAY RAD 1000S GENERAL / OTHER
Model ERAY RAD 630S ERAY RAD 800S ERAY RAD 1000S
Power 50 kW 80 kW 80 kW
mAs Range 0.1–630 mAs 0.1–800 mAs 0.1–1000 mAs
kV Range 40–125 kV 40–125 kV 40–125 kV
mA Range 10–630 mA 10–800 mA 10–1000 mA
Max. Power Output 150 kV 330 mA
125 kV 400 mA
100 kV 500 mA 		150 kV 50 mA
125 kV 630 mA
100 kV 800 mA 		150 kV 50 mA
125 kV 630 mA
100 kV 800 mA
Line Nominal, Phase Three Phase, 440V ±10%, 50/60 Hz
Inverter Frequency 220 kHz
Time Range 1 ms–10000 ms
Power Requirement 380 VAC
Exposure Mode Manual & Automatic

X-RAY TUBE

SPECIFICATION ERAY RAD 630S ERAY RAD 800S ERAY RAD 1000S GENERAL / OTHER
Focal Spot Size 0.6 mm / 1.5 mm 0.6 mm / 1.2 mm 0.6 mm / 1.2 mm
Max Anode 200 kHU 300 kHU 300 kHU
Max kV 150 kV
Rotary Anode 4800 RPM 7200 RPM 7200 RPM

ERAY GOLD FLAT PANEL DETECTOR

SPECIFICATION ERAY GOLD14 ERAY GOLD17 GENERAL / OTHER
Dimension 383 × 460 × 15 mm 460 × 460 × 15 mm
Sensor Array a-Si Photodiode
Scintillator CsI / GOS
Resolution 2500 × 3052 3072 × 3072
Pixel Size 140 µm
Grayscale 16 bit
WiFi 802.11ac / 2 antennas / 2s scan to display / AP Mode
Drop Height 70 cm
Housing Material Mg-Al alloy
Weight (Battery Included) 2.7 kg 3.2 kg
Waterproof IP56
Durability (Face Load / Point Load) 300 / 120 kg
Trigger Mode AED Mode
Battery Autonomy 8 Hours*

*In SYNC mode, user can capture more than 1000 images every 30 seconds and lasting over 8 hours.

AUTO TRACKING MODULE

Auto Tracking Available Yes
Auto Positioning Available Yes

TUBE STAND ASSEMBLY

Length of the Rail 2910 mm, deviation ±5%
Height of Tube Stand 2390 mm, deviation ±5%
Tube Stand Rotation Angle ±180°, deviation ±2%
Tube Stand Horizontal Movement Range 2100 mm, deviation ±5%

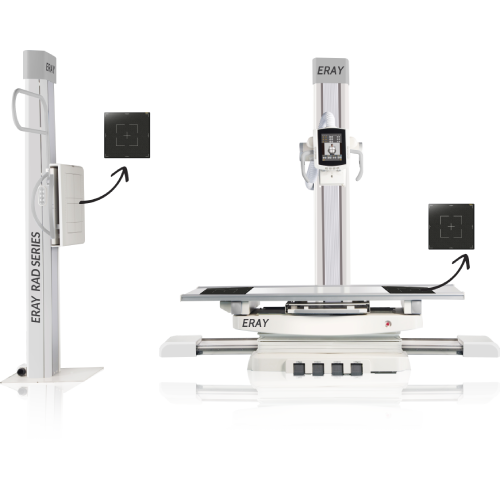

VERTICAL CHEST STAND

Tube Vertical Moving Range 1345 mm, deviation ±5%
Bucky Vertical Movement Range 1425 mm, deviation ±5%

6-WAY TABLE

Size 2000 mm × 800 mm × 5300 mm (deviation ±5%)
Bed Lifting Range 530–880 mm (deviation ±5%)
Longitudinal Floating Range <525 mm
Horizontal Floating Range <285 mm
Bearing Weight 250 kg
Floating Control Mode Footswitch, Electromagnetic Control

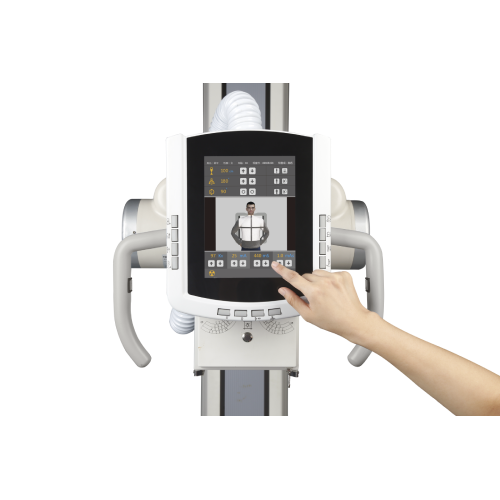

IMAGING STATION – CONSOLE

Operating System Windows 10
CPU i5 10th Generation
RAM 16 GB
Hard Disk 1 TB
Image Storage 10,000 images
Screen Size 22 inch
Features
  • Quick preview images in under 5 seconds for a seamless patient experience
  • Edusoft IAS technology delivers high-contrast, sharp digital images for accurate diagnoses
  • Flexible vertical and horizontal bucky system prevents damage to the detector
  • Superior image quality thanks to the highest quality detector
  • Wide dynamic range for viewing both soft tissue and hard bone structures simultaneously
  • User-friendly software with Edusoft IAS that enhances image details by removing grids and exposure errors
  • Perfectly dry film printing process eliminates the need for chemicals
  • Optional drop-proof detector test available up to 100cm
  • Optional dual energy subtraction and auto image stitching for improved accuracy
  • Post-processing features further improve image quality
  • Optional dust and water-resistant detector with IP67 rating for added durability
