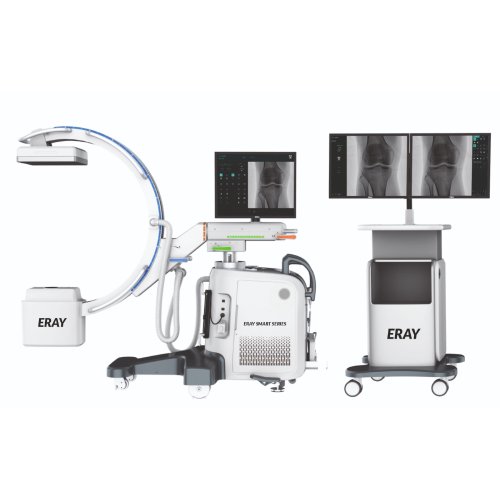

Eco Digital Mobile C-Arm

X-RAY GENERTOR	MODEL	ERAY SMART 5C
	GENERATOR TYPE	High Frequency Technology
	POWER OUTPUT	5kW
	mAs RANGE	0.2mAs-125mAs
CONTINUOUS FLUROSCOPY MODE	VOLTAGE RANGE	40kV-110kV
CONTINUOUS FLUROSCOPY MODE	mA RANGE	0.2mA-10mA
PULSE FLUROSCOPY MODE	VOLTAGE RANGE	40kV-110kV
PULSE FLUROSCOPY MODE	mA RANGE	0.2mA-25mA
DIGITAL RADIOGRAPHY MODE	VOLTAGE RANGE	40kV-125kV
DIGITAL RADIOGRAPHY MODE	mA RANGE	1mA-25mA
X-RAY TUBE	TYPE	Stationary Anode
X-RAY TUBE	FOCAL POINT	0.6/1.8 mm
COLLIMATOR	TYPE	Rectngular Collimator

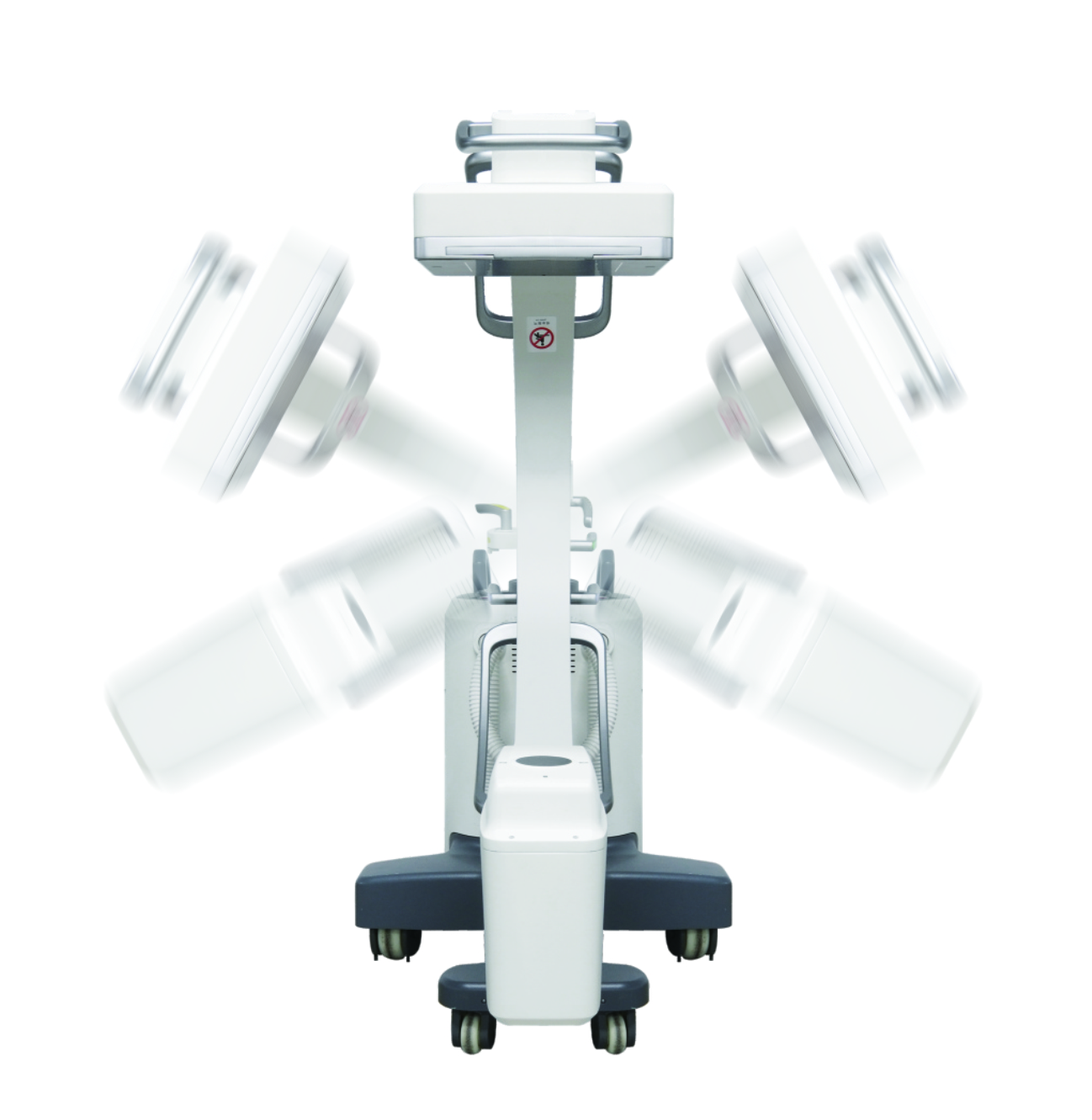

C-ARM STRUCTURE	ORBITAL ROTATION	-33° to +117°
	LATERAL ROTATION	+180°
	VERTICAL TRAVEL	40Omm
	HORIZONTAL TRAVEL	20Omm
	WIG/WAG RANGE	+15°
FLAT PANEL DETECTOR	TECHNOLOGY	Amorphous Silicon (a-Si) with Csl
	SIZE	g.. glT
	EFFECTIVE IMAGING AREA	236.5mm X 236.5mm
	MATRIX SIZE	1024X1024 px
	A/D CONVERSION	16 bit
	PIXEL SIZE	l54pm
	SPATIAL RESOLUTION	2 ip/mm
MONITOR	SIZE	27″Monitor or 19″Monitor (Optional)
	RESOLUTION	128OX1024
	SUPPORT	Multi-Touch
	HORIZONTAL ROTATION ANGLE	360°

Features

High-Performance Imaging Workstation: The advanced imaging workstation and image processing system provide a user-friendly interface, facilitating seamless integration with hospital networks.
DICOM 3.0 Network Interface: Ensures easy integration with PACS (Picture Archiving and Communication System) or RIS (Radiology Information System), enhancing data management and workflow.
High-Frequency Generator: Delivers the necessary power for various applications, including spine surgery, orthopedics, traumatology, urology, and pain management.
Streamlined Workflow: Designed for easy operation, enhancing the overall efficiency in surgical settings.
High-Frame Rate Imaging: Capable of capturing images up to 30 frames per second (fps), ensuring detailed and precise imaging.
High-Resolution Flat Panel Detector: Featuring a 9″ x 9″ high-resolution flat panel detector, offering superior image quality and greater coverage.
High-Brightness Color Monitors: Displays live and reference images in high resolution, improving visualization during procedures.
Waterproof Wire Footswitch: Provides freedom of movement in the OR and is easy to clean, ensuring hygiene and convenience.

Edusoft Healthcare’s Surgical Mobile C-Arms offer high-resolution imaging, a high-frequency generator, and a DICOM 3.0 network interface. They are designed for easy operability, versatility, and efficiency in various surgical environments, including orthopedics, trauma, neurosurgery, and more.

The high-frequency generator provides consistent power for various applications, ensuring reliable performance during spine surgery, orthopedics, traumatology, urology, and pain management procedures. This leads to better imaging quality and more effective surgical outcomes.

These C-Arms capture images at up to 30 frames per second, offering high-resolution imaging with a 9″ x 9″ flat panel detector. This capability ensures detailed and accurate visualization for precise diagnostics and surgical interventions.

The high-brightness color monitors display live and reference images in high resolution, providing surgeons with clear and detailed visual information during procedures. This enhances accuracy and improves surgical outcomes.

The DICOM 3.0 network interface allows seamless integration with PACS (Picture Archiving and Communication System) and RIS (Radiology Information System). This facilitates efficient data management and streamlined workflows, enhancing overall efficiency in surgical settings.

The ergonomic design includes features like a large 6-way floating tabletop with mechanical height adjustment and a waterproof wire footswitch. These features simplify patient positioning, improve ease of use, and enhance overall workflow efficiency in the operating room.

The flat panel detector technology used in Edusoft’s Mobile C-Arms provides high-quality images at low radiation doses, ensuring patient safety while maintaining excellent image quality. This is crucial for frequent imaging and long-duration procedures.

The waterproof wire footswitch offers freedom of movement in the operating room and is easier to clean, ensuring hygiene and convenience. It enhances functionality and safety during surgical procedures.

The advanced imaging workstation features intuitive controls and a user-friendly interface, making it easy to operate and integrate with hospital networks. This improves efficiency and reduces the workload on technicians, allowing for more focused patient care.

Edusoft Healthcare’s Surgical Mobile C-Arms are designed to deliver exceptional image quality, ease of use, and workflow efficiency. With advanced features like high-frequency generators, high-resolution detectors, and seamless network integration, these C-Arms provide a reliable and versatile imaging solution for a wide range of surgical applications.
