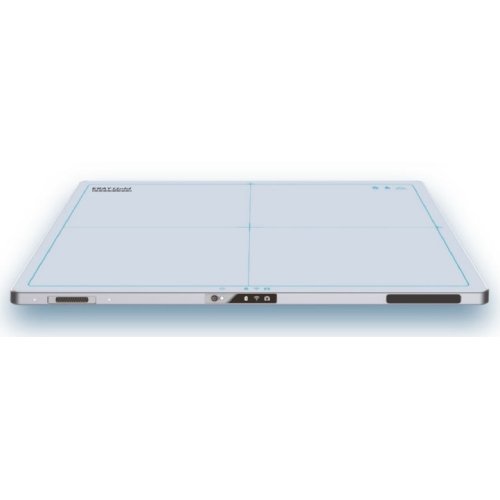

ERAY Gold Breakfree
Flat Panel Detector
Being one of top soluon providers in india, we deliver an user-oriented product which equips high-quality image, lightweight, dual baery and innovave wifi antenna to enhace work efficiency.
| MODEL | ERAY Gold BREAK FREE |
| DIMENSION | 383 x 460 x 15 mm(14'x17') |
| SENSOR ARRAY | a-Si Photodiode |
| SCINTILLATOR | CsI / GOS |
| RESOLUTION | 2500 x 3052 |
| PIXEL SIZE | 140 mm |
| GRAY SCALE | 16 bit |
| WIFI | 802.11ac / 2 antennas / 2s scan to display / AP Mode |
| DROP HEIGHT | 70 cm |
| HOUSING MATERIAL | Mg-Al alloy |
| WEIGHT (BATTERY INCLUDED) | 2.5 kg |
| WATERPROOF | IP56 |
| DURABILITY (FACE LOAD/ POINT LOAD) | 300 / 120 kg |
| TRIGGER MODE | AED Mode |
| BATTERY AUTONOMY | 8 Hours* |
| LOG FILE | Log File, sensor data and other calibration data are available |
| ACCESSORIES | Battery / Magnetic connector cable with ethernet and power |
| OPERATING TEMPERATURE/HUMIDITY | 10 ~ 35 °C / 15 ~ 80 % |
TRANSFER IN A FLASH
With specialized antenna design, our product can achieve fast transfer and receive strong signal at anyme and anywhere. In the meanme, built-in wireless communicaon supports IEEE 802.11ac enablinga a state-of-the-art transfer speed. Furthermore, we can be very proud to annnounce that the full image can be received within 2 seconds,achieving one of the fastest in the world.
SMART DESIGN FOR HOT SWAP AND SEIZING IMAGE IN TIME
User can freely exchange baery at any me without stopping, shung down or any power supply connect to the system. Moreover, our product ensures that the last image is kept in device before shung down, in case of accidents.
FEATHER WEIGHT DESIGN
In order to enhance the mobility, the whole device weight only 2.7kg (1417) / 3.2kg (1717) including baery, making it effortless to carry around.
EASY CLEANING
The detector is IPX6- rated for water resistant, allowing user to clean it easily.SELF MANAGEMENT AND MONITORING
Since our detector has built in sensors including temperature and gravity, which are constantly monitoring even during panel in powered off state to make sure the panel is funconing properly and user can operate safely.
REMARKABLE LONG-LASTING FEATURE
With our powerful baery lasng over 8 hours while capturing more than 1000 images at every 30 seconds sequenally without any interrupon.
ACCESS POINT MODE
Equipped with access point funciton, our product can connect to computer without extra wireless configuraon seng. It undoubtedly brings a user-friendly interface to improving work efficiency.
