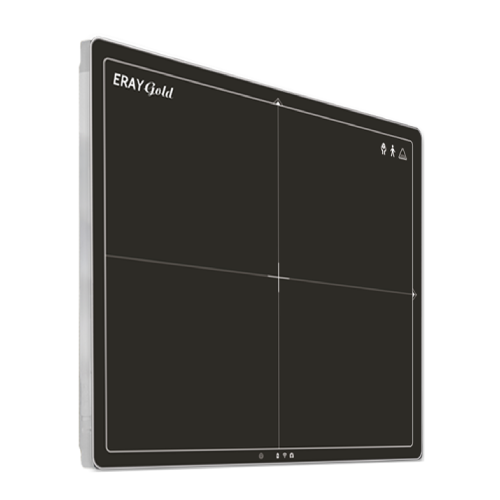

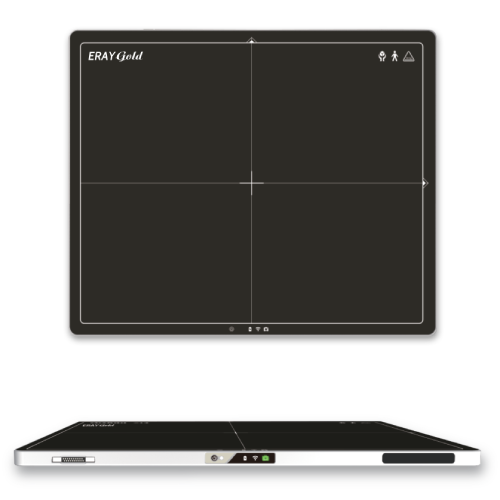

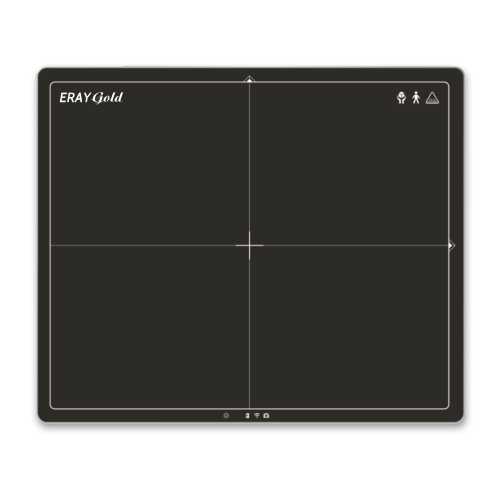

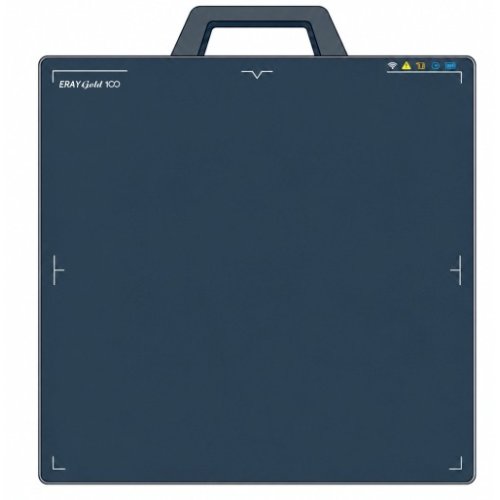

ERAY Gold 100 Detector
Overcoming the Cost Obstacle to Wireless DR Imaging
Transitioning to full digital X-ray can significantly improve productivity, enhance patient care and speed up your workflow. However, the cost involved in upgrading can pose a major obstacle for many healthcare facilities.
With the ERAY Gold 100 Detector, cost is no longer a barrier for rooms, mobiles, and retrofit systems to enjoy the benefits of affordable, wireless DR imaging.
| Model | ERAY Gold 100 |
| Detector technology | Amorphous Silicon (a-Si TFT) |
| Scintillator | Csl, direct deposition |
| Active area | 17" × 17" (426.7 × 426.7 mm) |
| Resolution | 4.2k × 4.2k |
| Pixel pitch | 100μm |
| Spatial resolution | 4.3 lp/mm |
| DQE @ 0 lp/mm | 73% |
| MTF @ 0.5 lp/mm | 87% |
| A/D conversion | 16-bit |
| X-ray energy | 40–150 kV |
| SID | 90–180 cm |
| Weight | 3.4 kg with battery |
| Static loading | 300 kg uniform · 150 kg local (Ø 4 cm) |
| Ingress protection | IP56 |
| Full image time | 3sec |
| Internal storage | 200 full-size images |
| WIFI | 2.4G & 5G, IEEE 802.11 a/b/g/n/ac |
| Battery autonomy | 8 hours |
| Battery capacity | Typ. 4900 mAh · 11.55 V |
| Full charging time | ≤ 3 hours |
| Power consumption | Max 20 W, no battery charging |
| Operating environment | 10–35 °C · 5–90% RH |
| Storage & transport | −20–55 °C · 5–95% RH, with package |
| Software | ERAY ImageSuite (CDSCO Approved) |
Affordable DR Imaging Solution for Veterinary Clinics
Upgrade your existing veterinary imaging equipment to full wireless DR without breaking the bank with the ERAY Gold 100 Detector . The easy-to-install retrofit solution provides immediate access to high-quality images, eliminates cable clutter and reduces tripping hazards.
- Enhance your veterinary workflow and expedite patient care with the ability to view images instantly using DR technology.
- Image Suite Software includes a comprehensive set of vet-specific measurement tools, providing accurate and reliable diagnostic information.
- Choose an affordable, flexible retrofit solution that fits your budget and enhances your imaging capabilities.
Superior Imaging
- Offers unmatched image quality with full digital technology.
- Beam Detect Mode automatically captures images when X-ray exposure is detected.
Streamlined Workflow
- Features a user-friendly interface for efficient operation.
- Wireless capabilities enhance workflow and patient throughput.
Versatile Performance
- Designed for smaller facilities and specialty practices with Image Suite Software.
- Capable of performing various exam types on both bucky and table-top configurations.
- Compatible with multiple DR rooms, mobiles, and retrofit systems.
