| ITEMS |
SPECIFICATIONS |
| MODEL |

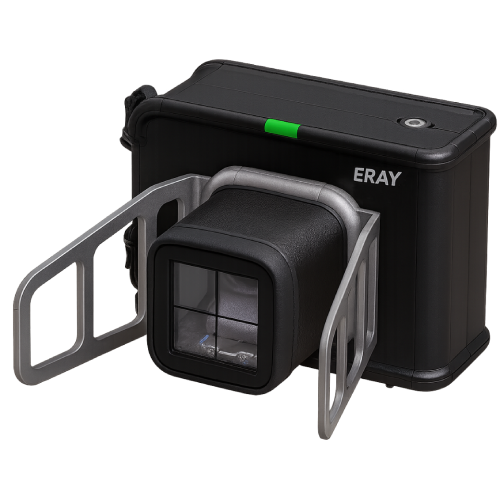

ERAY SMART 3HS |
| APPLICATION |
Chest X-Ray + Extremites |
| WORKING FREQUENCY |
80kHz |
| NOMINAL POWER |
210W |
| kV RANGE |
40kV ~ 70kV |
| mA RANGE |
1mA ~ 3mA (1 Step) |
| EXPOSURE TIME |
0.3 ~ 2.00s |
| FOCAL SPOT |
0.4mm |
| INHERENT FILTRATION |
0.5mmAl |
| WEIGHT |
Less than 2kg |
| BATTERY |
22.2V, 2200mAh |
| X-RAY CONSOLE |
7" Touch Screen |
Full Panel Detector
| ITEMS |
SPECIFICATIONS |
| ACTIVE DISPLAY AREA |
14"x17" |
17"x17" |
| DIMENSION |
383 x 460 x 15mm |
460 x 460 x 15mm |
| SCINTILLATOR |
CsI / GOS |
| GREY SCALE |
16 bit |
| PIXEL |
140 μm |
| INTERNAL STORAGE |
Upto 200 images |
| PANEL WEIGHT |
2.7kg |
3.2kg |
| FACE LOAD/POINT LOAD |
300kg / 120 kg |
| IP RATING |
IP56 |
Key Technical Specifications Related to TB Screening
Our hand-held X-ray machine is specifically designed to meet the essential requirements of TB screening, ensuring accurate and efficient detection in both urban and remote healthcare settings.
- Optimized X-Ray Output: Operating at 80kV, 5mA, with a 2-second exposure time, the device offers high-quality pulmonary images essential for identifying TB lesions. The 80kV output allows deeper penetration, while the lower 5mA current reduces radiation exposure, ensuring safety for repeated screenings.
- Low Radiation Dose: The advanced configuration ensures minimal radiation exposure without compromising image clarity, making it safe for vulnerable groups such as children and pregnant women.
- High-Resolution Imaging: Capable of producing detailed images critical for detecting early-stage TB abnormalities, with digital storage options for real-time data transmission and telemedicine integration.
- Battery and Power Efficiency: Fully battery-operated, supporting 100+ scans per charge with fast recharging in under 1.5 hours, ideal for field operations with limited power access.
- Portability and Durability: Weighing under 5 kg, it is compact and robust, suitable for transport to remote areas where conventional systems are impractical. The ergonomic design ensures ease of use with minimal training.
These technical specifications make our device a powerful solution for large-scale TB screening, aligning with India’s mission to End TB by 2026 by delivering safe, accurate, and accessible diagnostics in diverse environments.
