Ultra-Portable Handheld X-Ray

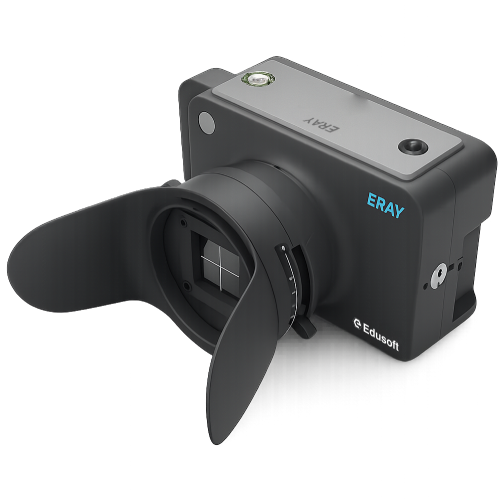

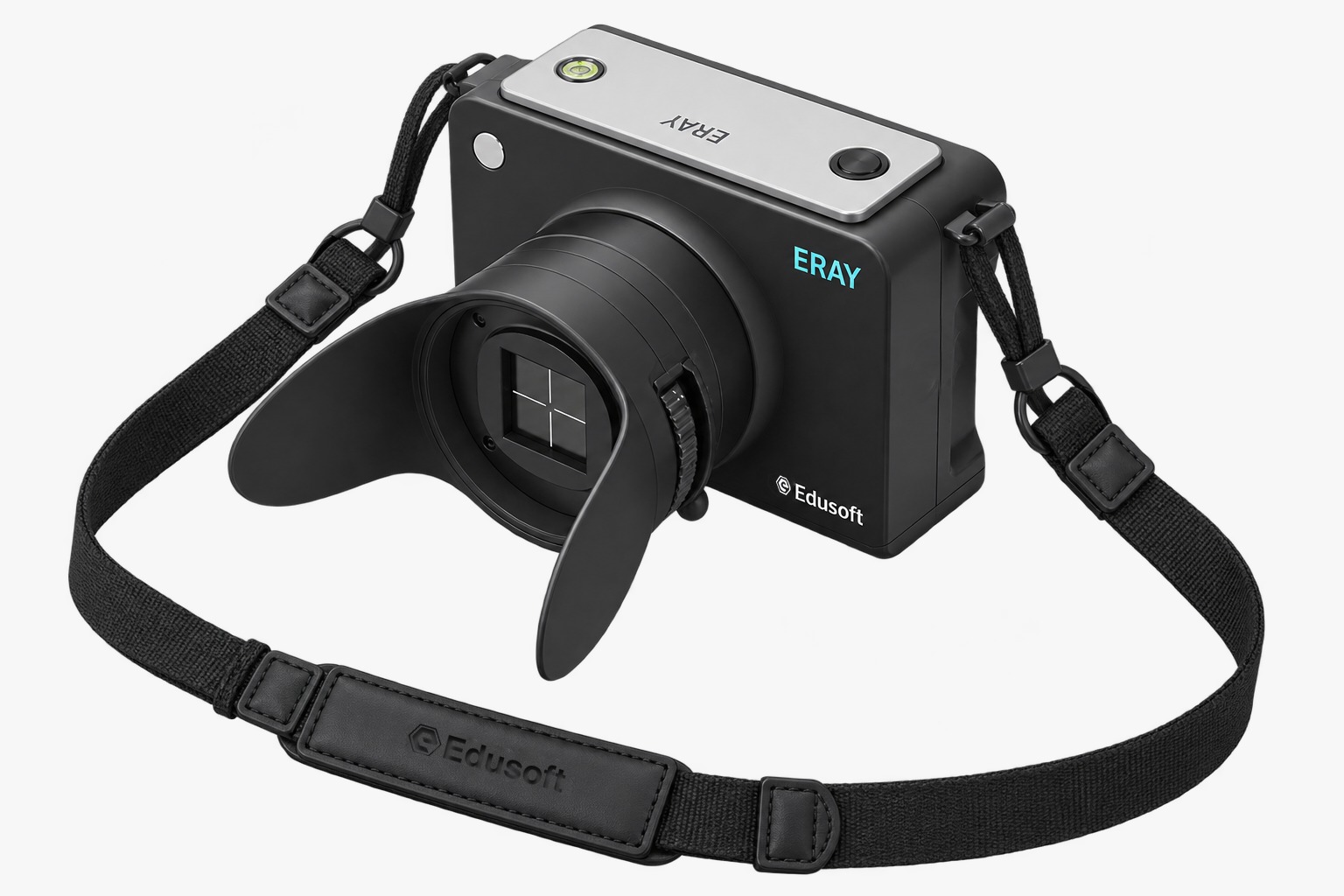

The ERAY SMART 5HS Ultra-Portable Handheld X-Ray is an ultra-lightweight device weighing just less that 4kg, designed for exceptional portability and convenience. Powered by a durable lithium polymer battery, it captures up to 100 images per charge. It ensures safer imaging while offering versatile applications such as TB detection, NICUs, disaster sites, and home care. Its compact design allows for fast imaging and effortless mounting on support stands, redefining efficiency in portable X-ray solutions.

Key Features
  • Portability: Compact and lightweight design, perfect for fieldwork, emergency response, critical care and point-of-care environments.
  • High Shot Capacity: Capable of delivering 150 exposure shots per charge, ensuring efficient usage in busy or remote settings.
  • Wireless Operation: Cord-free design for true mobility and flexible clinical workflow
  • Multi-Language Interface: Supports English, Hind and Tamil for user convenience
  • Remote Control Enabled: Supports remote operation for enhanced safety and workflow flexibility
  • Precision Dose Monitoring: Integrated DAP Meter helps monitor and manage rediation exposure efficiently
Download Brochure
slide img slide img slide img
MODEL ERAY SMART 5HS
X-RAY GENERATOR POWER OUTPUT Upto 450W
kV RANGE 50 - 80kV (1 step, Variable)
mA RANGE 2mA - 5mA (1 step, Variable)
mAs RANGE 0.01 - 10mAs
EXPOSURE TIME 0.01 sec to 2 sec
COLLIMATOR SID 43cm x 43cm @100cm SID
LIGHT SOURCE LED Lamp
BEAM LIMITING & CENTERING ARRANGEMENT Available
X-RAY TUBE FOCAL SPOT 0.8 mm
TARGET ANGLE 16 degrees
ANODE HEAT STORAGE CAPACITY 8000 J /(10000 HU)
INHERENT FILTRATION 2.5mm Al Eq
POWER REQUIREMENT LI-POLYMER BATTERY 22.2VDC, 2,250mAh
NUMBER OF EXPOSURES About 150 Times (70 kV, 5mAs)
AC POWER ADAPTER AC 100-240V, 50/60Hz (25.2V / 1.5A)
CHARGING TIME OF BATTERY Upto 4 hours
WEIGHT MAIN BODY Less than 4kg
SIZE MAIN BODY 249mm x 194mm x 194mm

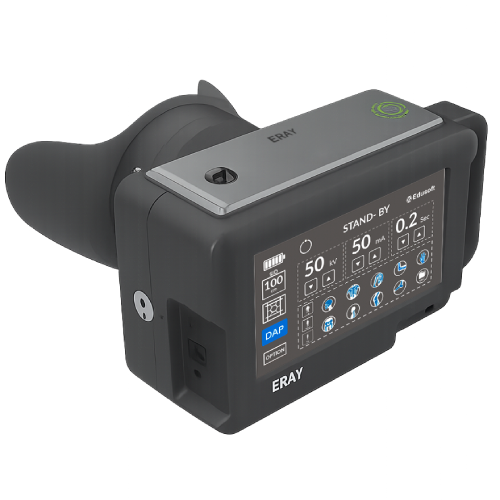

DISPLAY SCREEN (7 Inch) SCREEN-APR BASED EXPOSURE SETTINGS Available
DISPLAY OF kV, mA, mAs, EXPOSURE TIME & BATTERY CHARGER INDICATOR Available
ERROR MESSAGES Available
LANGUAGES English, Hindi & Tamil
DAP Available
LOW BATTERY CUTOFF FUNCTION Available
WARRANTY 1 Year
Key Technical Specifications Related to TB Screening

Our hand-held X-ray machine is specifically designed to meet the essential requirements of TB screening, ensuring accurate and efficient detection in both urban and remote healthcare settings.

  • Optimized X-Ray Output: Operating at 80kV, 5mA, with a 2-second exposure time, the device offers high-quality pulmonary images essential for identifying TB lesions. The 80kV output allows deeper penetration, while the lower 5mA current reduces radiation exposure, ensuring safety for repeated screenings.
  • Low Radiation Dose: The advanced configuration ensures minimal radiation exposure without compromising image clarity, making it safe for vulnerable groups such as children and pregnant women.
  • High-Resolution Imaging: Capable of producing detailed images critical for detecting early-stage TB abnormalities, with digital storage options for real-time data transmission and telemedicine integration.
  • Battery and Power Efficiency: Fully battery-operated, supporting 100+ scans per charge with fast recharging in under 1.5 hours, ideal for field operations with limited power access.
  • Portability and Durability: Weighing under 5 kg, it is compact and robust, suitable for transport to remote areas where conventional systems are impractical. The ergonomic design ensures ease of use with minimal training.

These technical specifications make our device a powerful solution for large-scale TB screening, aligning with India’s mission to End TB by 2026 by delivering safe, accurate, and accessible diagnostics in diverse environments.
