ERAY SMART 6HS Ultra-Portable
Handheld X-Ray

The ERAY SMART 6HS Ultra-Portable Handheld X-Ray is a compact and lightweight diagnostic X-ray unit with a main body weight of just 3.5 kg, designed for imaging wherever the patient is located. Powered by a 22.2 VDC, 2,200 mAh Li-polymer battery, it delivers about 150 exposures per charge, providing reliable performance for point-of-care imaging. With a 50–90 kV range, up to 450 W power output and 2–10 mA tube current, it combines portability with hospital-grade imaging performance. Its wireless, touch-operated workflow, integrated DAP meter, anatomical APR presets and multiple exposure-triggering options make it suitable for bedside imaging, home healthcare, outreach camps, emergency response and field applications.

Key Features
  • Ultra-Portable Design: Compact 3.5 kg main body with dimensions of 249 × 194 × 194 mm, making it easy to transport and deploy at the point of care.
  • High Shot Capacity: Provides about 150 exposures per charge at 70 kV and 5 mAs, supporting extended portable imaging workflows.
  • High-Frequency Generator: Delivers up to 450 W of ripple-free, constant-potential output for consistent diagnostic imaging.
  • Wireless Operation: Cord-free operation enables flexible positioning and seamless integration with DR acquisition workflows.
  • Wide kV Range: Adjustable 50–90 kV range with 2–10 mA tube current for versatile imaging applications.
  • One-Touch Anatomical Technique: Features 9 programmable APR memories plus favourite settings for quick selection of commonly used techniques.
  • Multi-Language Interface: Touch interface supports English, Hindi and Tamil, improving ease of operation for diverse users.
  • Integrated DAP Meter: Provides dose-area product monitoring to support radiation dose awareness and operator protection.
  • Multiple Exposure Options: Exposure can be triggered through the on-body trigger, two-stage hand switch or infrared remote with up to 5 m range.
  • Adjustable Collimation: Manual collimation with 3.3 V LED lamp and a field size of 43 × 43 cm at 100 cm SID.
  • Point-of-Care Ready: Designed for bedside, home healthcare, outreach camps, emergency response and field imaging applications.
  • Rugged Environmental Performance: Designed to operate from 10°C to 60°C with 30–75% RH, supporting demanding field environments.
Download Brochure

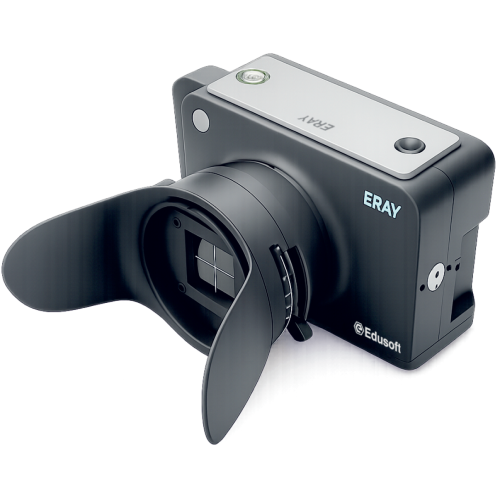

slide img
X-Ray Generator
Model ERAY SMART 6HS
Power output Up to 450 W
kV range 50 – 90 kV
mA range 2 – 10 mA
mAs range 0.10 – 10 mAs
X - Ray Tube
Type Stationary
Focal spot 0.8 mm
Target angle 16°
Anode heat storage capacity 8000 J
Input power (at 0.1 sec) 1280 W
Inherent filtration 2.5 mm Al Eq
Collimator
Field size 43 × 43 cm @ 100 cm SID
Lamp 3.3 V LED
Power Requirement
Li-polymer battery 22.2 VDC · 2,200 mAh
Number of exposures
(single charge)		 About 150 (70 kV, 5 mAs)
AC power adapter 100–240 V, 50/60 Hz (25.2 V / 1.5 A)
Battery charging time About 2 hours
Physical
Weight — main body 3.5 kg
Size — main body (W × D × H) 249 × 194 × 194 mm
Environment
Operating environment 10 – 60 °C · 30–75% RH
Storage & transport –20 – +60 °C · 10–95% RH
Atmospheric pressure 700 – 1060 hPa
Key Technical Specifications Related to TB Screening

Our hand-held X-ray machine is specifically designed to meet the essential requirements of TB screening, ensuring accurate and efficient detection in both urban and remote healthcare settings.

  • Optimized X-Ray Output: Operating at 80kV, 5mA, with a 2-second exposure time, the device offers high-quality pulmonary images essential for identifying TB lesions. The 80kV output allows deeper penetration, while the lower 5mA current reduces radiation exposure, ensuring safety for repeated screenings.
  • Low Radiation Dose: The advanced configuration ensures minimal radiation exposure without compromising image clarity, making it safe for vulnerable groups such as children and pregnant women.
  • High-Resolution Imaging: Capable of producing detailed images critical for detecting early-stage TB abnormalities, with digital storage options for real-time data transmission and telemedicine integration.
  • Battery and Power Efficiency: Fully battery-operated, supporting 100+ scans per charge with fast recharging in under 1.5 hours, ideal for field operations with limited power access.
  • Portability and Durability: Weighing under 5 kg, it is compact and robust, suitable for transport to remote areas where conventional systems are impractical. The ergonomic design ensures ease of use with minimal training.

These technical specifications make our device a powerful solution for large-scale TB screening, aligning with India’s mission to End TB by 2026 by delivering safe, accurate, and accessible diagnostics in diverse environments.
